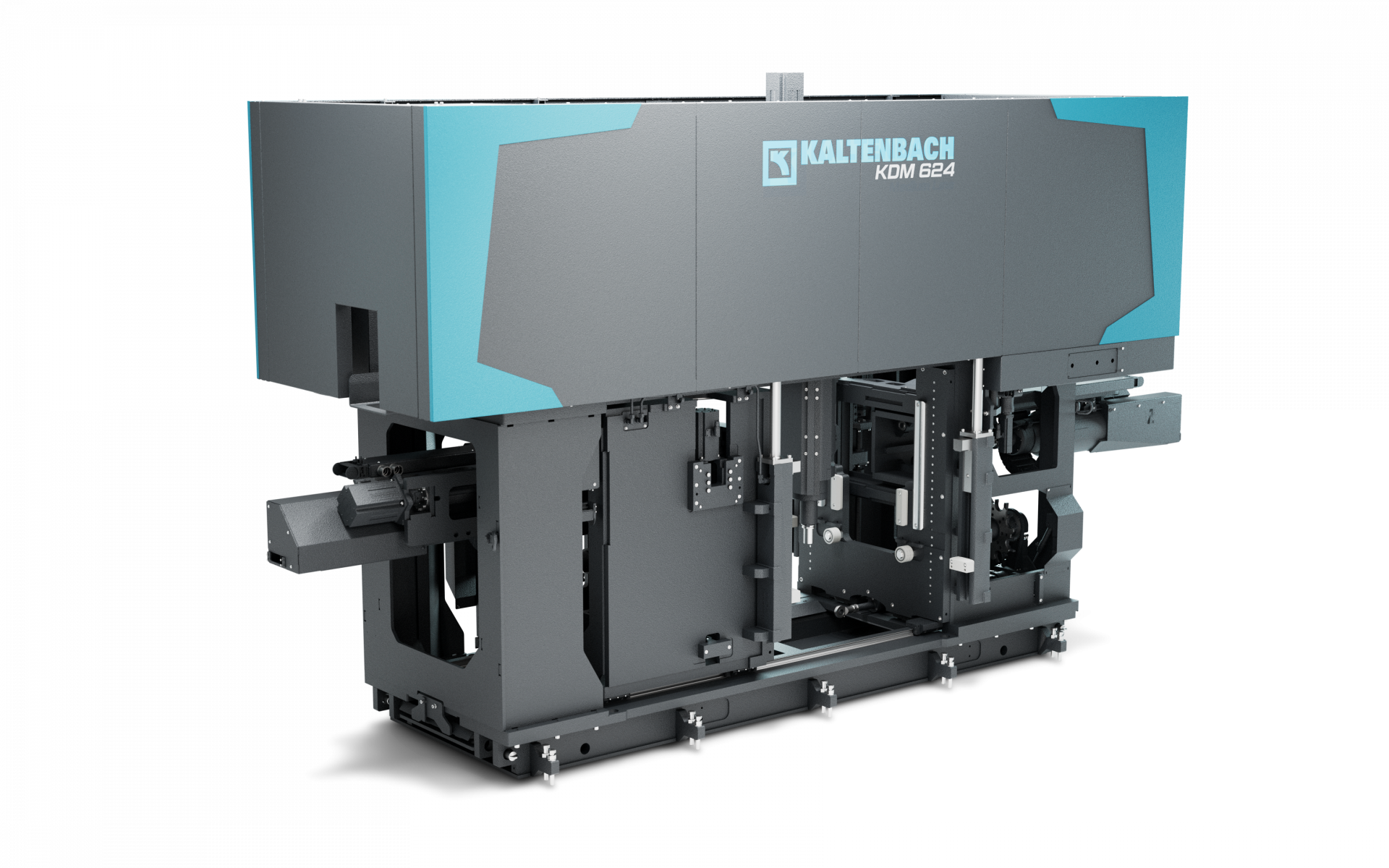

KDM 624
Drilling machine
with 8-position tool changer
for professional users in the mid and higher capacity segments
Working range
750 x 500 mm | 30" x 20"
Number of tools 24
Benefits at a glance
- Versatile machining with a high degree of automation: drilling, milling, and marking on up to four sides
- Precise drilling up to Ø 40 mm / 1.6”
- Movable additional axis with 300 mm / 12” travel on three sides, independent
- Independent, simultaneous machining with three axes
- Milling of complex contours using carbide tools
- 8-position automatic tool changer per axis
PROFILINE
Modern Software Package for KALTENBACH Drilling and Drilling-Sawing Machines
PROFILINE
Easy, user friendly machine operation
- Programming of orders via color touchscreen with large keypads directly on the machine control console
PROFILINE
Order manager
- Create, copy and delete orders
- Graphic display of individual positions within an order
PROFILINE
Profile database
- Comprehensive profile database
- Easily expandable
- Graphic display of workpiece forms
PROFILINE
Tool manager
- Tool Changer setup based upon the tool type and diameter
- Allocation of the drill diameter to rotational speed settings and feed rates
PROFILINE
Production data report
- Recording of production times of individual pieces or entire orders
PROFILINE
Data transfer and data response
- Data input directly on the machine’s control console
- Data import in DSTV or DSTV+ format
- Data export of previously produced parts in DSTV feedback format to any directory
