Product Portfolio

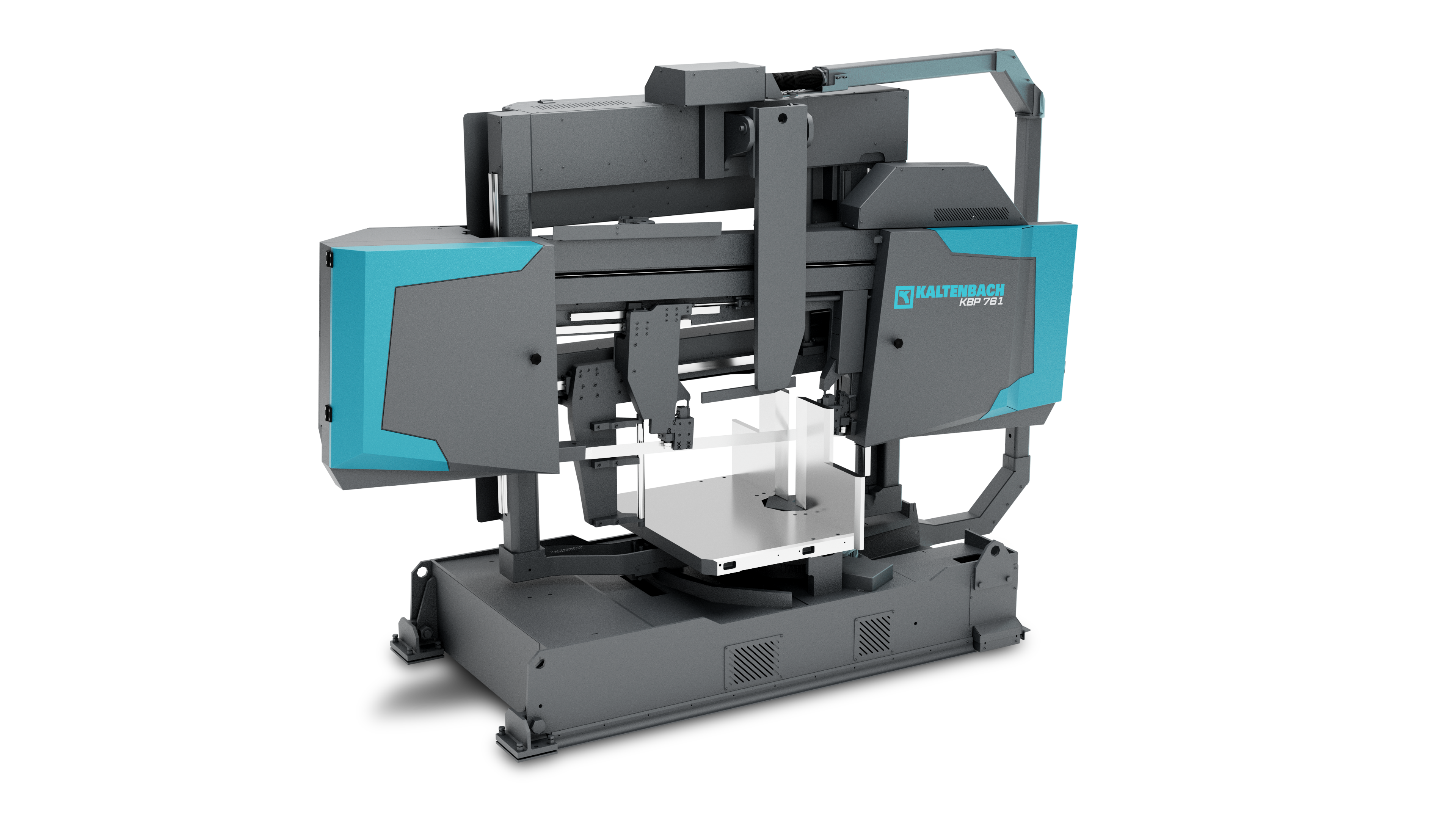

KBP 761

Band saw wit miter unit (+60°/-50°)
for performance-driven operations with high throughput
Working range
750 x 500 mm | 30"x 20"

Benefits at a glance

Suitable for 54 mm | 2.13” saw bands
Compatible with carbide-tipped saw bands
Optional CCT: Clear Cut Technology—the innovative table lift function that effectively prevents the saw band from jamming

Unique sorting solutions

Optionally equipped with innovative AFC—Auto Feed Control

Automatic adjustment of the saw band inclination
Increased cutting performance of up to 50%

KBP 761

Download Leaflet

High cutting performance
- Very solid and reliable clamping system
- Low cost of ownership
- First class end products
High-performance sawing machine
- with a 54 mm | 2.1” saw band
Intelligent software solutions
Optimal Feed
- Saw feed with ball screw and servomotor
- Constant and temperature-independent feed
- Low idle times and higher machine utilization
Precise setting
- NC-controlled angle setting
- High quality cuts
- NC-standard enables high reliability
Powerful and reliable clamping
- Horizontal and vertical clamping device
- Low vibrations for long saw band lifetime and low operating costs
- Cutting of material layers and bundles possible
Optimal process flow
- Accurate positioning of material at in- and outfeed side
- Measuring carriages with various types of pushers and grippers
- Length stop LS 220 and LS 270
Innovative AFC - Auto Feed Control
- Automatic adjustment of the saw band inclination
- Increased cutting performance of up to 50%
CCT - Clear Cut Technology
- The innovative table-lift function that effectively prevents the saw band from jamming
SPG 601 - Short Piece Gripper
- Short Piece Gripper for Band Saws KBS 751 | KBP 761
- Three outfeed positions
- Automated outsorting of short parts and handling of parts with mitered cuts
- Enabling full automation of the entire system
POD - Push off device
- Simple lateral discharge of short good parts, as well as heavy parts to the side of the roller conveyor
PROFILINE

Modern Software Package for KALTENBACH Drilling and Drilling-Sawing Machines
PROFILINE
Easy, user friendly machine operation

Programming of orders via color touchscreen with large keypads directly on the machine control console
PROFILINE
Order manager

Create, copy and delete orders

Graphic display of individual positions within an order
PROFILINE
Profile database

Comprehensive profile database

Easily expandable

Graphic display of workpiece forms
PROFILINE
Tool manager

Tool Changer setup based upon the tool type and diameter

Allocation of the drill diameter to rotational speed settings and feed rates
PROFILINE
Production data report

Recording of production times of individual pieces or entire orders
PROFILINE
Data transfer and data response

Data input directly on the machine’s control console

Data import in DSTV or DSTV+ format

Data export of previously produced parts in DSTV feedback format to any directory
Downloads
Flussdiagramm_Profiline_en (PDF, 0.03 MB)
KDM 624
- Drilling machine with 8-position tool changer
- Working range 750 x 500 mm | 30" x 20"
- Number of tools 24
GIETART ECO Blaster
- Possibility to combine with a powerful GIETART ECO Blaster, resulting in a perfectly aligned capacity for a smooth production flow
Efficient material handling
- Designed to ensure an optimal process flow, and therefore the most effective processing of material in your production area
NEW - M-Line
The M-Line combines performance with versatility.

Tailored for growing steel fabricators and traders who require higher output, more features, and seamless integration into their workflow.
KBS 751
For steel fabricators and steel distributors looking to take their first steps into automated sawing technology. Compact, reliable, and designed for daily operation - perfect for steel processors seeking efficiency without complexity.
KBP 1001
- Band saw with miter unit (+60°/-50°)
  for performance-driven operations with high throughput
- Working range 1,030 x 500 mm | 40" x 20"
