Versatile production of all kinds of steel contructions

Flexible production for structural engineering projects

From CAD and DSTV+ files to the real world. With this line, it is possible to process single parts on a highly accurate level. F.e. blasting, sawing, drilling, milling, cutting and coping. Welding of the parts together can be easily effected. Afterwards, the constructions can be be cleaned and painted, to produce excellent end products.

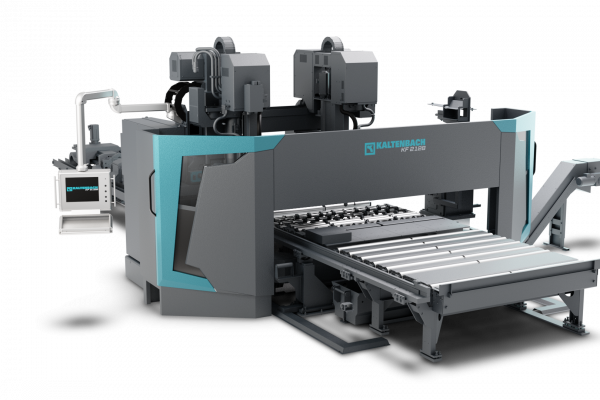

KF 2614 / 28

Modern plate processing for plates up to 3 m | 122” wide and 100 mm | 4” thick Plate width 2,600 mm | 102”

Detailed Description

Via importing the CAD, DSTV+ files into PROFILINE, the transition will be made to start the production. Sophisticated processes, such as sawing, drilling, milling, cutting and coping, will result in high-quality parts. Perfectly cleaned for manual welding, according to the ISO1090 standard. After welding, the complete constructions can be blasted and painted fully automatically, by means of the GIETART 3D Blaster and Top Coating line, incl. 3D Scanner. This integrated system enables to reduce your internal logistic and handling costs considerably.

All machines within solution

KF 2614 / 28

Modern plate processing
for plates up to 3 m | 122” wide
and 100 mm | 4” thick
Plate width
2,600 mm | 102”

View Machine Request Information

GIETART Top Coating 2512

Final painting system for customized steel profiles and constructions
Workspace
2,500 x 800 mm | 98" x 32"
Number of spray guns 12
Available with unique 3D scanning system
- Substitute for KTC

View Machine Request Information

KDP 1036

Drilling machine
with 12-position tool changer
for performance-driven operations with high throughput
Working range
1,000 x 600 mm | 39" x 23"
Number of tools 36

View Machine Request Information

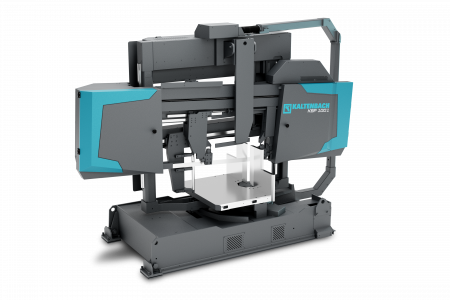

KBP 1001

Band saw with miter unit (+60°/-50°)
for performance-driven operations with high throughput
Working range
1,030 x 500 mm | 40" x 20"

View Machine Request Information

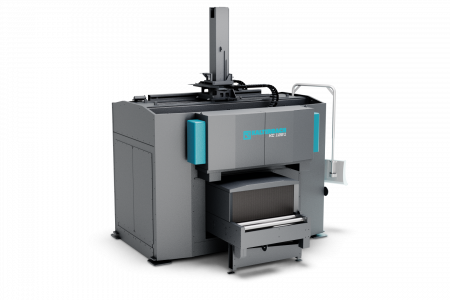

KC 1221

Versatile coping system
for four-sided marking and cutting
for professional steel fabrication and steel service center
Working range
1,220 × 475 mm | 48 x 19”

View Machine Request Information

KKS 463 NA

Highest demands, reliably fulfilled
Fully-automatic universal circular saw for profiles, solid materials and tubes
Workspace 153 mm | 6"

View Machine Request Information

GIETART ECO Blaster 1504

Cost effective shot blasting system for cleaning plates, profiles and tubes
Workspace
1,500 x 600 mm | 59" x 24"
Number of turbines 4
Suitable for a throughput up to 20,000 tons a year
- Substitute for SPRINT

View Machine Request Information

GIETART 3D Blaster 3010

Perfect for blasting welded steel constructions
Workspace
3,000 x 1,600 mm | 118" x 63"
Number of turbines 10
Capacity depending on the shape and weight of the parts
- Substitute for TRIATHLON

View Machine Request Information
