KF 2614 / 28

• Plain-text display of machine data and possible error messages
• Good observation of the processes and rapid intervention in case of disturbance

• Drill carriage mounted on dual play-free, pre-stressed linear guides
• Robust mountig for high precision when drilling

• Universally implementable gas cutting unit built onto the drilling unit
• Automatic height adjustment of the cutting unit

• Automatic disposal of small parts in a removable finished-parts container

• Highest cutting performance and optimum cutting quality
• In addition a high-performance plasma cutting machine can optionally be used
• Common cut and cross-cut technology generates significantly less waste

• System with pre-separator and dust collection container
• Filtering unit with eight cartridges in flame retardant design
• Automatic filter cleaning

• Can be expanded with an additional drilling/gas-cutting unit (autogenous and/or plasma)

• Fast, high-quality marking process for applying letters and numbers
• Marking depth to 1 mm regardless of material and plate thickness
• Imprint still clearly visible after galvanizing or painting

• Application of numbers + letters and reference boundaries for welding add-on pieces

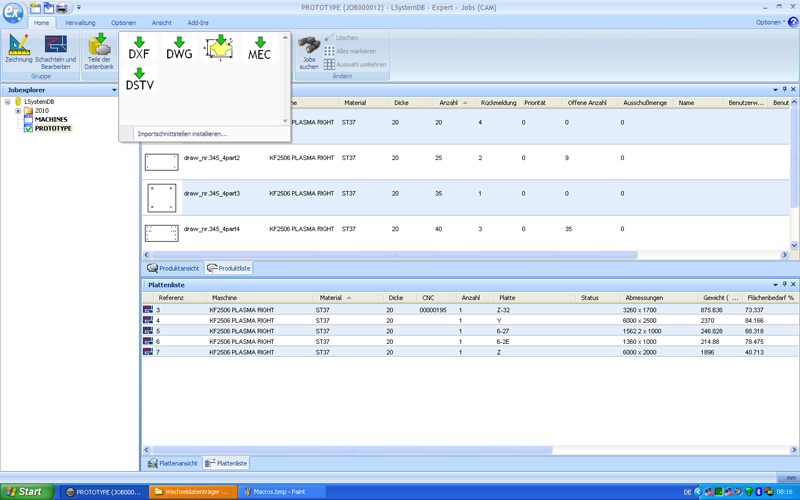

• DSTV-Data import
• Use of high-speed carbide tools

• Easy data import and export
• Automatic or manual nesting
• Partial programming possibility via NC-DSTV, DXF or DWG files
• Integrated drawing program or macros

• Automatic tool change on the drilling unit for the most common tool sizes
• Tool change unit consists of a chain change system directly attached to the portal
• Tool change automatically sets the correct speed and feed-rate values
• Automatic drill length sensing

• Fully automated swarf removal before thermal cutting

• Minimises vibrations and thus increasing machining quality and prolonging tool life
• Hold-down device is used with extensive milling operations

• Carriage

• Cross transport with lift-and-carry system

The KF plate processing centres are extremely versatile: Drilling, flame-cutting, boring, thread-cutting, centre marking, etching, marking and milling. The KF series can tackle the full range of maching tasks required for specific components for steel and plant fabrication such as end plates, base plates, gussets, ribs, flanges etc.
