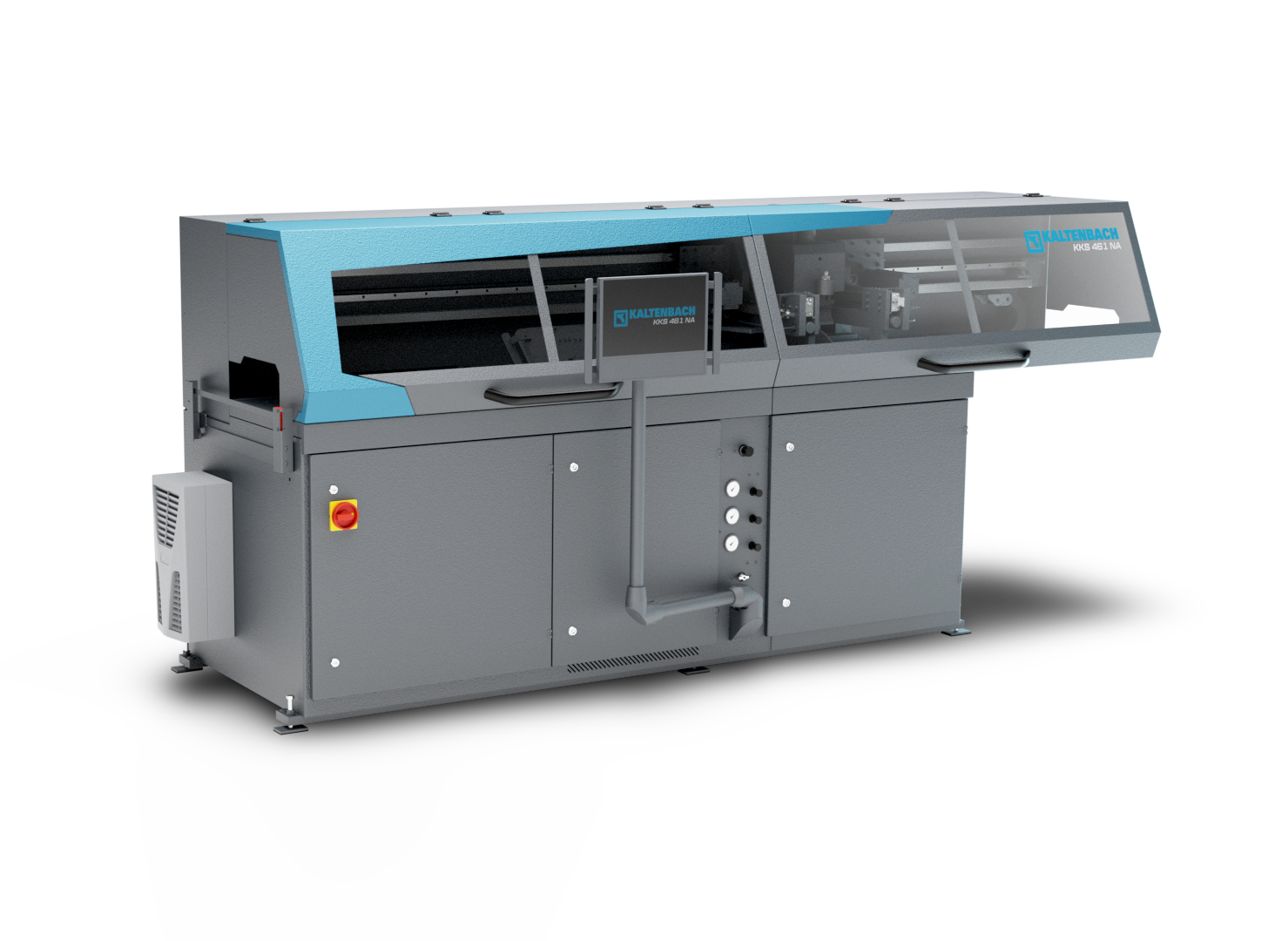

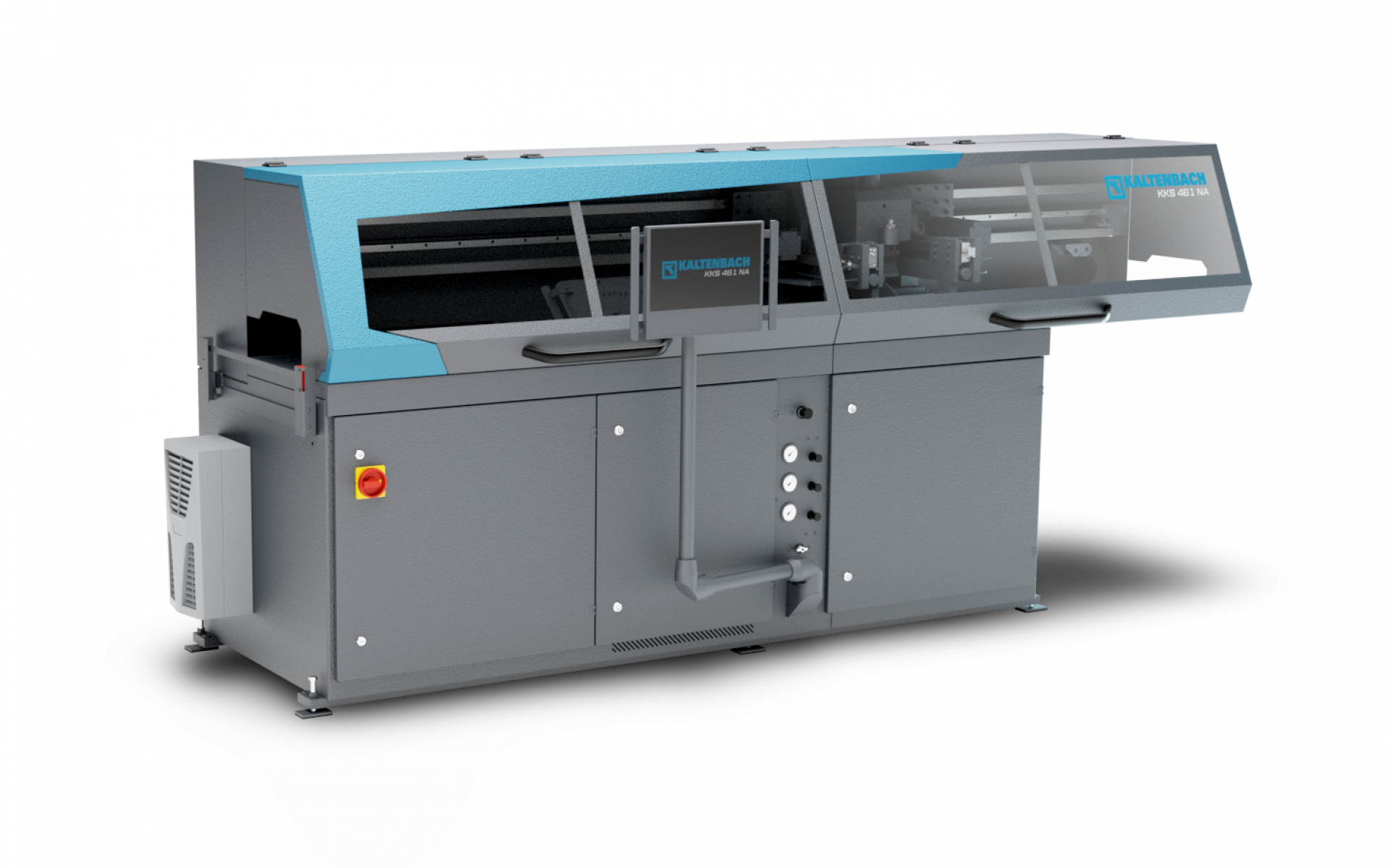

KKS 461 NA

Fully-automatic mitre saw for profiles and solid materials
Workspace [mm]: 155

Benefits at a glance

Automatic processing of various materials and profiles
Automatic material supply via the supply gripper
CNC-controlled rotary table for mitre cuts
Graphical operating surface (touchscreen) and PROFICUT Software
Automatic calculation of cutting speed and saw feed rate
Removal roll rail to push the cut parts
Flexible material feed from the left (optionally right) side
Optional automatic cut sorting
Continuous one-part machine case in welded execution

Precise cuts
- Robust, powerful drive with hardened and ground helical gears
- Smooth operation
Operation
- Easy operation
- Programming via touchscreen
Cut stop
- Mechanical cut stop
- For the material identification
High degree of automation
- Automatic mitring
- Automatic, program-controlled processing of cutting sequences
High cutting capacity
- Automatic calculation of the feed rate and cutting speed
- Feed motion via hydraulic cylinder
Automated sawing process
- Efficient processing of medium and large batches
- Minimal end-piece lengths due s pecial gripper design
- Multiple-stroke for cutting lengths up to 9,999 mm
- High-precision positioning via servomotor and ballscrew spindle
Workpiece clamping
- Large-scale pressure piece for secure, vertical clamping on both sides of the saw blade
- Horizontal clamp for additional workpiece clamping on outfeed side
PROFICUT

Modern Software Package for KALTENBACH Sawing Machines
PROFICUT
Easy, user friendly machine operation

Programming of orders via color touchscreen with large keypads directly on the machine control console

Storage possibility for as many sawing orders as desired

Automatic calculation of cutting speed and feed over the material group or DIN-Nr. (steel key)

Graphical representation of the material

Machine operation
PROFICUT
Profile database

Comprehensive profile database

Easily expandable

Graphic display of workpiece forms
PROFICUT
Production data report

Recording of production times of individual pieces or entire orders
PROFICUT
Data transfer and data response

Data input directly on the machine control console

Data import in DSTV or DSTV+ format

Data export of previously produced parts in DSTV feedback format to any directory
Downloads
Flussdiagramm_Proficut_en (PDF, 0.03 MB)
L 45 E length measuring device
- For manually adjustment of measurement length
- Adjustable vernier for high measurement accuracy
- Attachable stop guide for short cut lengths
- Stop arm can be pivoted upwards
- Can be fitted with a digital display
L 45 I length measuring device
- The stop is moved using handwheel, clamping hydraulically using hand valve
- Digital length display
- Stop arm can be swiveled up and down
L 41 NC length measuring device
- For electronic adjustment of the measuring length via NC-control
- Feed gripper is clamped automatically after the positioning
- Easy operation via touch screen
- Data import via USB
T3 Transport System for Circular Saws
- For material feed and removal with circular saws
- Ball-bearing light-running rollers
- Operating width: 330 mm / Roller diameter: 60 mm
Automatic Bar Separation
- VM Bundle Magazine
- For pre-storing of round and square material in the bundle
Automatic Bar Infeed
- FM 1 flat magazine
- Highly flexible universal magazine for pre-storing almost all profile shapes and solid material
- Different depths available
Automatic Bar Infeed
- LM 1 loading magazine
- For pre-storing round and square material
Tiltable conveyor belt
- Highly flexible section sorting via "teach in"
- Sort to front, bottom and back
KKS 463 NA
Fully-automatic universal circular saw for the automatic processing of profile and solid materials as well as tubes.
