Product Portfolio

NEW - P-Line

Name: Saw-Drill Combination M-Line
Uploaded: 2026-03-12T14:18:35+01:00
Description: The Reliable Core of Your Production

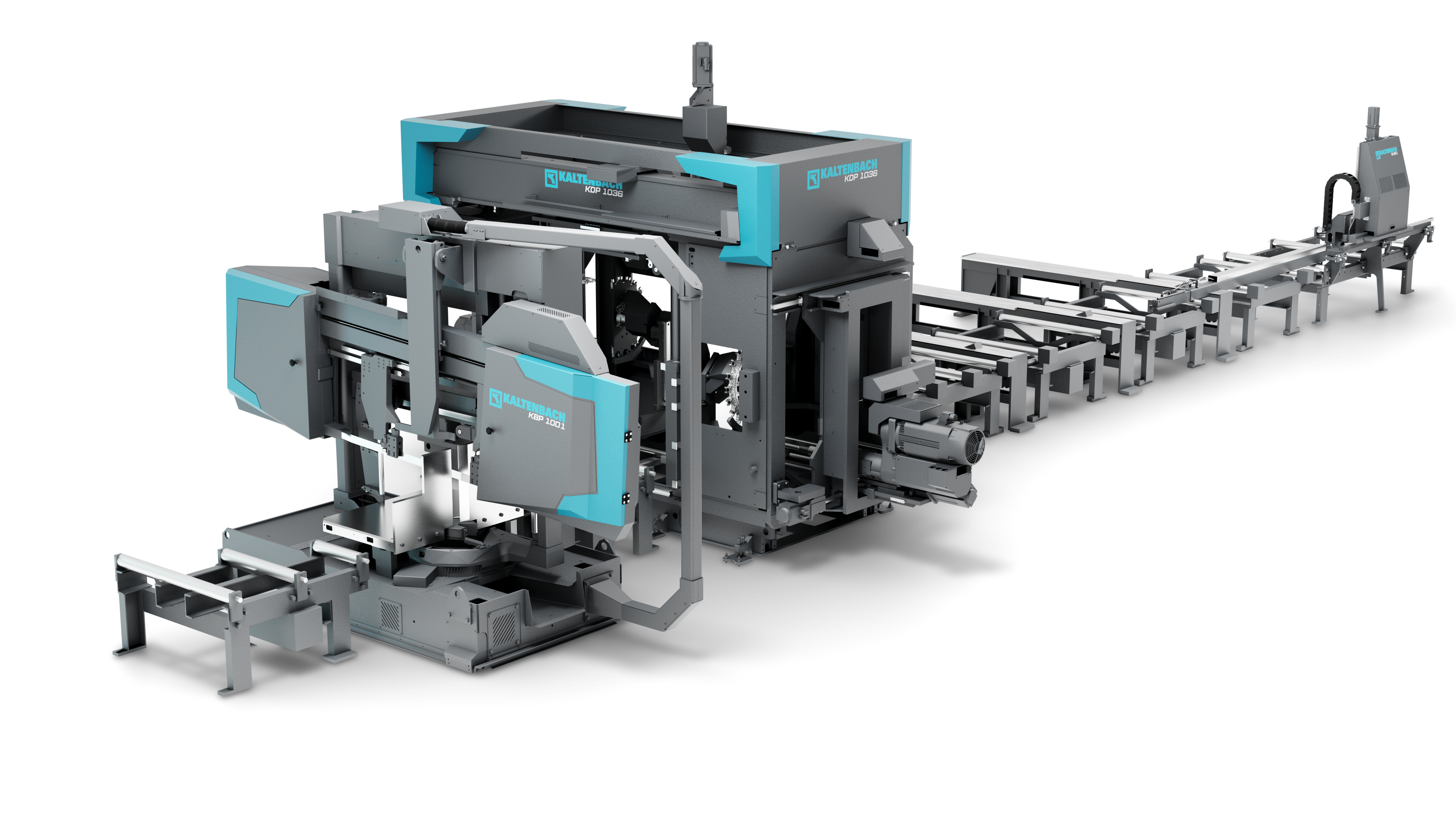

Saw-Drill-Combination P-Line
- for high-volume, performance-driven operations
KBP 1001 | 1301
KDP 1036 | 1336

The Top Class for the Highest Demands

Benefits at a glance

A fast, fully automated, high-end system
Versatile processing with a high level of automation: drilling, milling, and layout marking on up to 4 sides, including center point marking
Movable sub-axis 500 mm / 20”, on 3 sides (independently)
Simultaneous processing across 3 axes
Suitable for up to 67 mm / 2.6” saw bands
Compatible with carbide saw bands & modular drilling systems
Optional CCT: Clear Cut Technology – the innovative table-lift function that effectively prevents the saw band from jamming
Unique AS sorting solutions
Simultaneous sawing and drilling possible

Download Leaflet

The fastest saw on the market
Precise drilling
- up to Ø 50 mm / 2”
Suitable for up to 67 mm | 2.6“ saw bands
- also carbide possible
12-position automatic tool changer
- Fast tool changer for 12 tools per axis
- Low setup time for higher machine utilization
Ultimate machining diversity
Innovative AFC - Auto Feed Control
- Automatic adjustment of the saw band inclination
- Increased cutting performance of up to 50%
CCT - Clear Cut Technology
- The innovative table-lift function that effectively prevents the saw band from jamming
Smart material management
- Engineered to streamline workflows and boost efficiency at every stage of material handling in your production area
M 151 - Basic Measuring Carriage
- Reliable and efficient
- Hydraulic gripper for precise material positioning
- A solid solution for standard applications
M 251 - Measuring Carriage - For Advanced Automation
- Built for higher productivity
- The M 251 adds a movable servo axis for greater flexibility
- More gripping positions
- Automatic bar detection
- Fast loading of subsequent material
M 252 - Measuring Carriage - Compact Dual-Gripper Solution
- All the benefits of the M 251
- Plus a second hydraulic gripper
- Ideal for tight layouts
- Maximum performance in limited space
M 351 - Measuring Carriage - Maximum Flexibility
- Designed for complex tasks
- All the benefits of the M 251
- Plus two additional servo axes.
- Even more grippier positions
- Ideal for vertical beams and special profile shapes
AS 1001 - Autosorter
- Autosorter for Band Saw KBP 1001
- Compact and high-performance gripper unit with push-off device
- Up to 6 sorting positions in front of and behind the datum line
- Fully automatic system for extended productivity
AS 1301 - Autosorter
- Autosorter for Band Saw KBP 1301
- Massive and high-performance gripper unit with push-off device
- Up to 3 sorting positions
- Fully automatic system for extended productivity
SPG 1001 - Short Piece Gripper
- Short Piece Gripper for Band Saw KBP 1001
- Two outfeed positions (option for 3rd position)
- Automated outsorting of short parts and handling of parts with mitered cuts
- Enabling full automation of the entire system
GIETART High Speed Blaster 1506
Ideal for higher speeds and large quantities
Workspace
1,500 x 600 mm | 59" x 24"
Number of turbines 6
Suitable for a throughput up to 50,000 tons a year, and more
- Substitute for MARATHON
