KKS 400 DH

Double circular saw suitable for almost all steel qualities
Workspace [mm]: 130

Benefits at a glance

consists of two KKS 400 machines
with travelling frame and central control system
one machine can be positioneD
operation of both machines is controlled via foot switch
both of the machines can also operated separately
additionally a length measuring device can be fitted

Panel
- Simple operation via input panel
Rotary table for mitre cuts
- Pivoting range 180°
- Easy adjustment (optional CNC controlled)
Workpiece clamping
- Vertical long-stroke clamping cylinder
- Large scale pressure piece for secure clamping on both sides of the saw blade
- Hand crank for pre-adjustment
Additional workpiece clamping

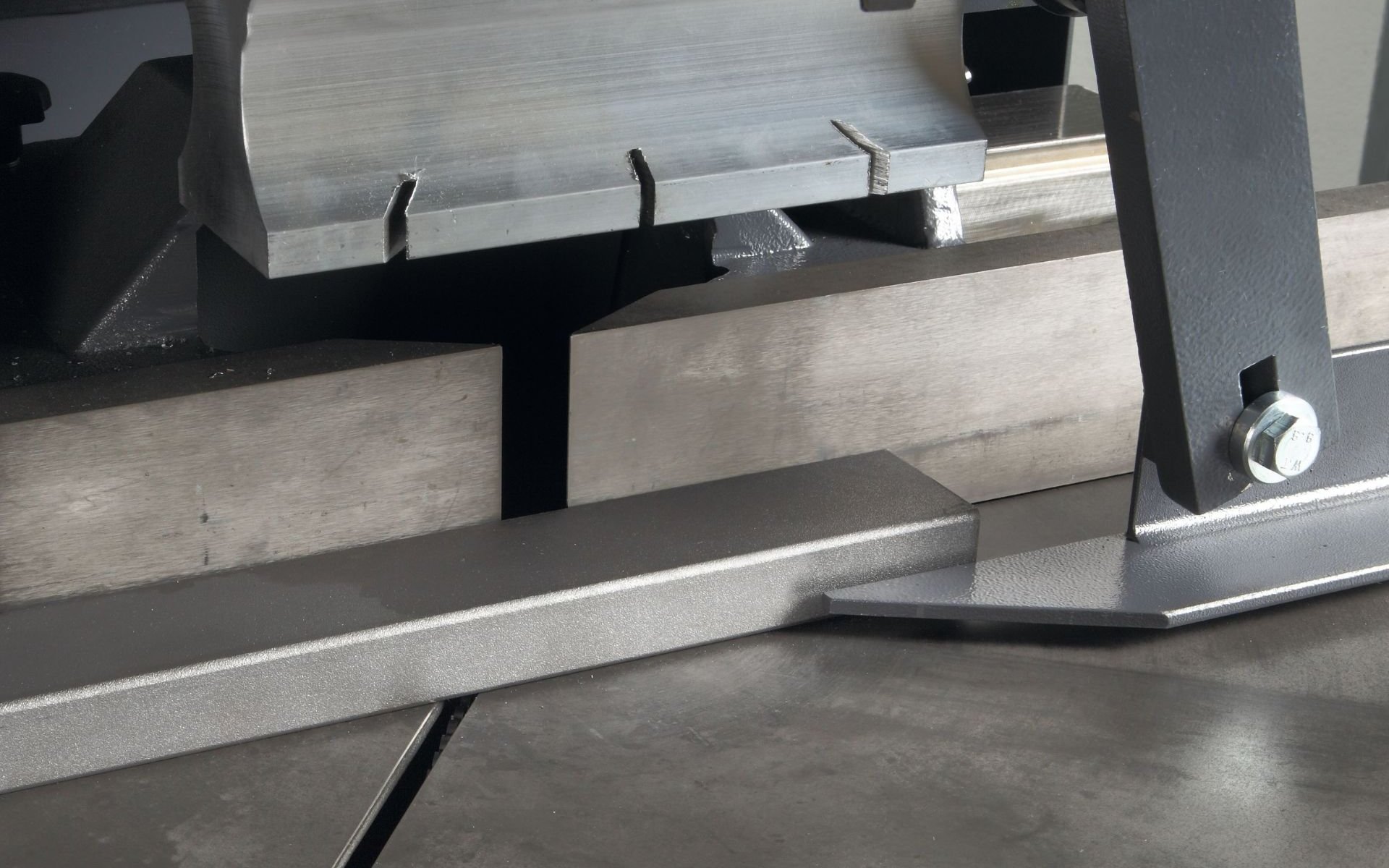

- Horizontal clamping device to the right and left of the saw blade (option)
- Clamping aid for thin-walled profiles
- Additional clamping for example sawing of acute angles
Precise straight and mitre cuts
- Stable contact surface for precise cuts
- Adjustable forwards and backwards
Individual feed adjustment
- Universal, infinitely-variable adjustment, even during the sawing process
- Lower feed rate with stainless steels, higher feed rate for tubes
- Feed movement via hydraulic cylinder
Minimum quantity lubrication
- Virtually dry workpiece
- Optimum tool lubrication
- Can be installed in addition to floot coolant device
- Disposal of lubricant unnecessary
- Long blade life
Precise cuts
- Robust, powerful drive with hardened and ground helical gears
- Smooth operation
Material related cutting speed
- Adaptable to the material
- Two cutting speeds as standard
Infinitely-variable adjustment of cutting speed
- Toothed-belt drive and frequency regulator for infinitely-variable cutting speed (opt.)
- Optimum adjustment of cutting speed to material quality
- Long blade life
L 45 E length measuring device
- For manually adjustment of measurement length
- Adjustable vernier for high measurement accuracy
- Attachable stop guide for short cut lengths
- Stop arm can be pivoted upwards
- Can be fitted with a digital display
T3 Transport System for Circular Saws
- For material feed and removal with circular saws
- Ball-bearing light-running rollers
- Operating width: 330 mm / Roller diameter: 60 mm
