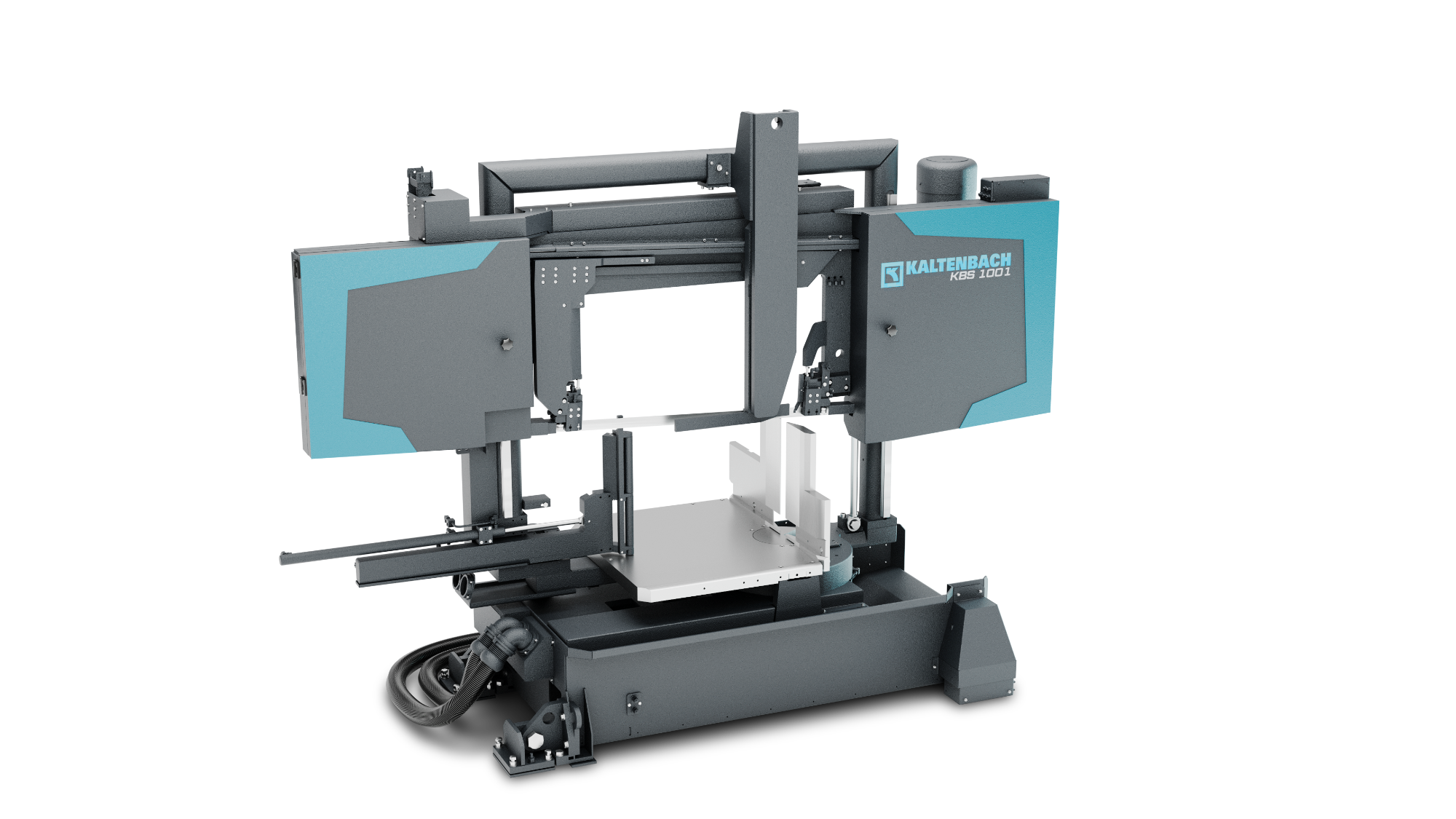

KBS 1001

For steel fabricators and steel distributors looking to take their first steps into automated sawing technology. Compact, reliable, and designed for daily operation - perfect for steel processors seeking efficiency without complexity.


Talk to our Specialists Download Brochure
KBS 1001

High cutting performance

  • Very solid and reliable clamping system
  • Low cost of ownership
  • First class end products
High cutting performance

Proven, stable hydraulic saw feed

Proven, stable hydraulic saw feed

High level of production flexibility

  • Powerful feed
  • Hydraulic feed control with monitoring
  • Fast and easy feed adjustement even during runtime
High level of production flexibility

Increased uptime

  • Automatic switching from rapid feed approach to pre-set feed rate
  • Low idle times and higher machine utilization
Increased uptime

Precise setting

  • NC-controlled angle setting
  • High quality cuts
  • NC-standard enables high reliability
Precise setting

Powerful and reliable clamping

  • Horizontal and vertical clamping device
  • Low vibrations for long saw band lifetime and low operating costs
  • Cutting of material layers and bundles possible
Powerful and reliable clamping

Long lifetime

  • Minimum quantity lubrication
  • Longer saw band lifetime
  • No lubrications rest on the material
Long lifetime

Efficient material handling

  • Designed to ensure an optimal process flow, and therefore the most effective processing of material in your production area
Efficient material handling

LS 220 - Length stop

  • Compact design with a slender guide rail for efficient use of space
  • Engineered for reliable performance in light to medium-duty applications
  • Simplified rail system for smooth and low-maintenance operation
  • High clamping force for secure handling of both bundles and individual bars
LS 220 - Length stop

LS 270 - Length stop

  • Heavy-duty design with a stable guide rail for optimum reliability
  • Engineered for medium to heavy-duty applications
  • Maximum clamping force achieved through 4 hydraulic cylinders
  • Suitable for handling individual bars, layers, and bundles
  • Extendable tongue for efficient handling of short parts
LS 270 - Length stop

M 151 - Basic Measuring Carriage

  • Reliable and efficient
  • Hydraulic gripper for precise material positioning
  • A solid solution for standard applications
M 151 - Basic Measuring Carriage

M 251 - Measuring Carriage - For Advanced Automation

  • Built for higher productivity
  • The M 251 adds a movable servo axis for greater flexibility
  • More gripping positions
  • Automatic bar detection
  • Fast loading of subsequent material
M 251 - Measuring Carriage - For Advanced Automation

M 252 - Measuring Carriage - Compact Dual-Gripper Solution

  • All the benefits of the M 251
  • Plus a second hydraulic gripper
  • Ideal for tight layouts
  • Maximum performance in limited space
M 252 - Measuring Carriage - Compact Dual-Gripper Solution

M 351 - Measuring Carriage - Maximum Flexibility

  • Designed for complex tasks
  • All the benefits of the M 251
  • Plus two additional servo axes.
  • Even more grippier positions
  • Ideal for vertical beams and special profile shapes
M 351 - Measuring Carriage - Maximum Flexibility

SPG 1001 - Short Piece Gripper

  • Short Piece Gripper for Band Saw KBP 1001
  • Two outfeed positions (option for 3rd position)
  • Automated outsorting of short parts and handling of parts with mitered cuts
  • Enabling full automation of the entire system
SPG 1001 - Short Piece Gripper

POD - Push off device

  • Simple discharge of both light and heavy parts
  • Two outfeed positions for flexible handling
  • Stable hydraulic system for reliable operation
POD - Push off device
