KKS 450 T
Semi-automatic mitring circular saw in special design for jig work
Workspace [mm]: 150
Benefits at a glance
- Saw table with tapped holes to enter specific clamping devices
- Electronic cut stroke limitation for a reduction in cycle times
- Reinforced drive motor for high cutting performances
- Optional, dynamic feed control via proportional valve
- Clamping arm with hydraulic long stroke clamping cylinder
- Minimal lubrication for nearly dry saw cuts
Panel- Simple operation via input panel
Precise straight and mitre cuts- Stable contact surface for precise cuts
- Adjustable forwards and backwards
Rotary table for mitre cuts- Easy, manual adjustment
- Pivoting range 180°
Minimum quantity lubrication- Virtually dry workpiece
- Optimum tool lubrication
- Can be installed in addition to floot coolant device
- Disposal of lubricant unnecessary
- Long blade life
Precise cuts- Robust, powerful drive with hardened and ground helical gears
- Smooth operation
Safety operation- Two-handed operation instead of protection cover

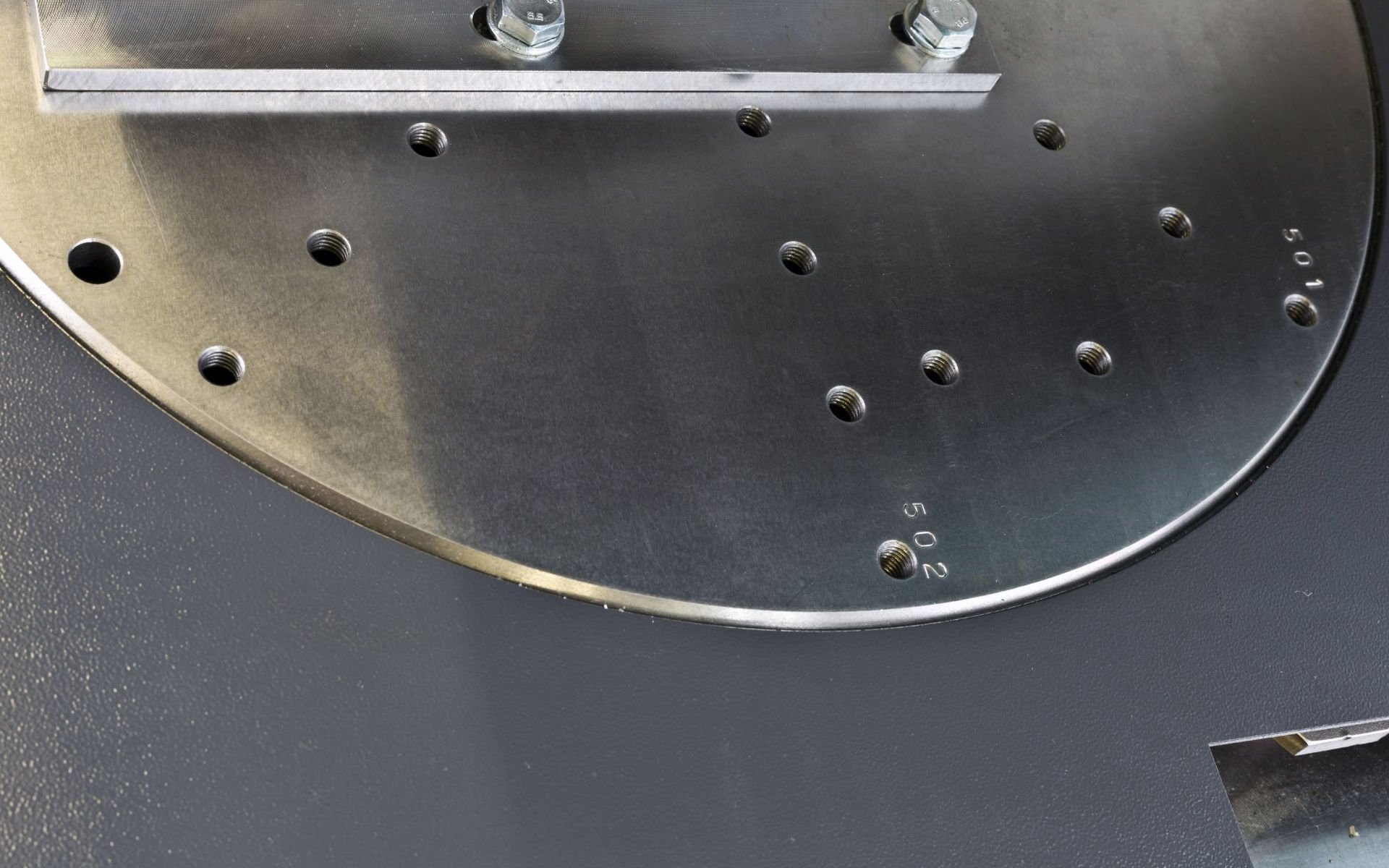

Drilling pattern- Drilling pattern in the saw table
- For clamping fixtures of the customers own design
Workpiece clamping- Large scale pressure piece for secure clamping on both sides of the saw blade
- Hand crank for pre-adjustment
- Flexible in material measurement, especially within wide limits
Individual feed adjustment- Universal, infinitely-variable adjustment, even during the sawing process
- Lower feed rate with stainless steels, higher feed rate for tubes
- Feed movement via hydraulic cylinder
Infinitely-variable adjustment of cutting speed- Toothed-belt drive and frequency regulator for infinitely-variable cutting speed
- Optimum adjustment of cutting speed to material quality
- Long blade life
L 45 E length measuring device- For manually adjustment of measurement length
- Adjustable vernier for high measurement accuracy
- Attachable stop guide for short cut lengths
- Stop arm can be pivoted upwards
- Can be fitted with a digital display
L 45 I length measuring device- The stop is moved using handwheel, clamping hydraulically using hand valve
- Digital length display
- Stop arm can be swiveled up and down
L 41 NC length measuring device- For electronic adjustment of the measuring length via NC-control
- Feed gripper is clamped automatically after the positioning
- Easy operation via touch screen
- Data import via USB
T3 Transport System for Circular Saws- For material feed and removal with circular saws
- Ball-bearing light-running rollers
- Operating width: 330 mm / Roller diameter: 60 mm
