Kaltenbach

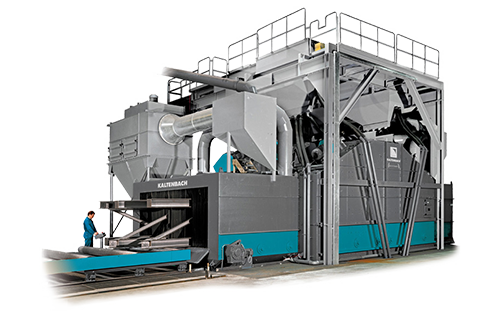

TRIATHLON A3010HD

SHOTBLAST SYSTEMS

Shotblasting for Steel Constructions Capacity range [mm]: 3000 x 1600 and Number of Turbines: 10

Video

Benefits at a glance

  • Aperture size (w x h): 3.100 x 1.700 mm
  • 10 turbines (15-22 kW each) – arranged diagonally to direction of movement
  • Complete shotblasting of steel fabricated beams and sections including standard structural steel sections and plates
  • Triple housing (steel / manganese steel / exchangeable manganese-steel internal lining)
Triathlon A3010HD
Funnel Collector with Screw Conveyor for Shotblasting Abrasive

Funnel Collector with Screw Conveyor for Shotblasting Abrasive

  • Collects shotblasting abrasive left on shotblasted materials
  • Return to the shotblasting machine by screw conveyor
3000 mm Discharge Lock Chamber

3000 mm Discharge Lock Chamber

  • Five curtains in the discharge lock chamber ensure that the shotblasting abrasive stays in the machine
  • A funnel collector with screw conveyor transports the shotblasting abrasive back to the bucket conveyor
Bucket Conveyor for Upward Conveyance of Shotblasting Abrasive

Bucket Conveyor for Upward Conveyance of Shotblasting Abrasive

  • Recirculation of shotblasting abrasive
  • Low operating costs
  • Complete with return stop and rpm monitor for safe operation
Triple Housing of the Shotblasting Machine

Triple Housing of the Shotblasting Machine

  • The outer hull is made of construction steel and ensures high stability of the entire system through its bolted manganese lining
  • High resistance to wear
  • The manganese lining can be quickly and easily exchanged when worn
Inspection Platform with Ladder

Inspection Platform with Ladder

  • Protected platform for inspections
  • Easy accessibility to filters
  • Maintenance friendly
Shotblasting Abrasive Container

Shotblasting Abrasive Container

  • Sufficient supply of shotblasting abrasive for a continuous process



Shotblasting Abrasive Cleaner

Shotblasting Abrasive Cleaner

  • Optimum, multi-level cascading air cleaner removes dust and scale from shotblasting abrasive
  • Good shotblasting results even with repeated use of the abrasive
Shotblasting Abrasive Pre-Separator

Shotblasting Abrasive Pre-Separator

  • Separation of shotblasting abrasive and vacuumed air
  • Long cartridge filter life
  • Low shotblasting abrasive use
C500 Shotblast Turbine

C500 Shotblast Turbine

  • Double-disc turbine wheel with eight blades for optimum shotblasting abrasive delivery
  • The turbine is driven by an electric motor via belt drive
  • Vertical mounting to the feedthrough direction. Thus optimum shotblasting results at the highest feedthrough speeds
Fully Automatic Extraction Unit

Fully Automatic Extraction Unit

  • Purification of the vacuumed air (< 1 mg / m2) by means of cartridge filters (without the use of additional filters)
  • Return of purified air to the work environment
  • Long cartridge filter life and thus low operating costs
ProcessShotblasting
Workspace max.mm3.000 x 1.600
Passage rangemm3.100 x 1.700
Number of turbinesPieces10
Drive performance per turbinekW15-22
Degree of Automationautomatic infeed
Full-Automatic
MaterialclassSteel
ProcessProfiles
Plate
Welded constructions
T 13 Modular Expandable Conveyor Roller System

T 13 Modular Expandable Conveyor Roller System

  • For material feed and removal
  • Executed in welded construction with maintenance-free, ball-bearing conveyor rollers of solid material
  • Roller-conveyor drive on the feed and removal sides with frequency-controlled gear motor
Cross Transport by Means of Lift-and-Carry System (As an Alternative to Drag Chains)

Cross Transport by Means of Lift-and-Carry System (As an Alternative to Drag Chains)

  • Hydraulic liftable and lowerable lifting beams running in both directions
  • Drive system with continuously-variable frequency-controlled gear motor
  • Each lifting line has its own hydraulic unit



Transport system T15

Transport system T15

  • Operation is made at the freestanding main cabinet / control panel
  • Drive system with frequency regulated gear motor, continuously variable
