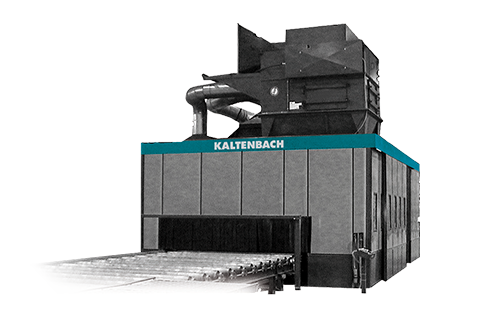

Shotblasting for Continuous Operations Capacity range [mm]: 2500 x 600 and Number of Turbines: 6
Video
Benefits at a glance
- Aperture size (w x h): 2.600 x 650 mm
- Six turbines (15 - 22 kW each)
- The solution for steel traders, steel fabricators and steelworks, as well as shipyards in shift operation
- Triple housing (steel / manganese steel / exchangeable manganese-steel internal lining)
- Maintenance and user friendly
Alternative Machines
Bucket Conveyor for Upward Conveyance of Shotblasting Abrasive
- Recirculation of shotblasting abrasive
- Low operating costs
- Complete with return stop and rpm monitor for safe operation
Brush and Blow-Off System
- Blasting abrasive conveying system, brushes and blowers are integrated into an adjustable supporting frame
- Precise adjustment to remove the shotblasting abrasives
- Easy control and changing of the brushes
Triple Housing of the Shotblasting Machine
- The outer hull is made of construction steel and ensures high stability of the entire system through its bolted manganese lining
- High resistance to wear
- The manganese lining can be quickly and easily exchanged when worn
Setting the Shotblasting Width
- Turbine adjustment according to the size of plate and profile
- Higher feedthrough speeds
- Less wear to the machine housing
Excellent Shotblasting Results with Optimum Throughput Speeds
- Operating speed designed for BSA = 2.5 with material grades S235JR NEN-EN
Inspection Platform with Ladder
- Protected platform for inspections
- Easy accessibility to filters
- Maintenance friendly
Refill Container for Shotblasting Abrasive (Optional)
- Control of the filling level in the shotblasting abrasive container; when at minimum level shotblasting abrasive is automatically added
Options for Various Materials (Optional)
- Shotblasting of thin materials
- Shotblasting of heavy materials
- Shotblasting of short materials
Cross-Flow Fan (Optional)
- Blow-off of water and snow (max. water film: 0.5 mm) prior to material processing
- Steel construction with permanently-installed cross-flow fan (optionally with automatic height adjustment)
Shotblasting Abrasive Container
- Sufficient supply of shotblasting abrasive for a continuous process
- Optional fill-level monitoring
Shotblasting Abrasive Cleaner
- Optimum, multi-level cascading air cleaner removes dust and scale from shotblasting abrasive
- Good shotblasting results even with repeated use of the abrasive
Shotblasting Abrasive Pre-Separator
- Separation of shotblasting abrasive and vacuumed air
- Long cartridge filter life
- Low shotblasting abrasive use
C500 Shotblast Turbine
- Double-disc turbine wheel with eight blades for optimum shotblasting abrasive delivery
- The turbine is driven by an electric motor via belt drive
- Vertical mounting to the feedthrough direction. Thus optimum shotblasting results at the highest feedthrough speeds
Fully-Automatic Extraction Unit
- Purification of the vacuumed air (< 1 mg / m2) by means of cartridge filters (without the use of additional filters)
- Return of purified air to the work environment
- Long cartridge filter life and thus low operating costs
Preheating Furnace (Optional)
- Four burners (two each upper and lower)
- Adjustable temperature range
- Extremely low gas consumption
- The preheating furnace is connected to the after-dryer by means of a duct system, heated air can thus be used in the drying process
| Process | Shotblasting | |
| Workspace max. | mm | 2.500 x 600 |
| working range Plate | mm | 2.500 x 50 |
| working range Profile | mm | 1.000 x 400 |
| Passage range | mm | 2.600 x 650 |
| Number of turbines | Pieces | 6 |
| Drive performance per turbine | kW | 15-22 |
| Degree of Automation | automatic infeed automatic outfeed Full-Automatic | |
| Materialclass | Steel | |
| Process | Profiles Plate |
T 13 Modular Expandable Conveyor Roller System
- For material feed and removal
- Executed in welded construction with maintenance-free, ball-bearing conveyor rollers of solid material
- Roller-conveyor drive on the feed and removal sides with frequency-controlled gear motor
Cross Transport by Means of Lift-and-Carry System (As an Alternative to Drag Chains)
- Hydraulic liftable and lowerable lifting beams running in both directions
- Drive system with continuously-variable frequency-controlled gear motor
- Each lifting line has its own hydraulic unit
Cross Transport by Means of Drag Chains
- Material stock in heavy-duty steel construction
- Sliding rails of synthetic material (polyamide) for low-noise material cross transport
- Drag chains with transport claws
- Drive system with continuously-variable frequency-controlled gear motor
Transport system T15
- Operation is made at the freestanding main cabinet / control panel
- Drive system with frequency regulated gear motor, continuously variable
