Kaltenbach

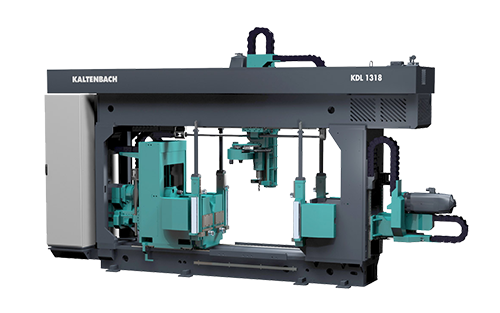

KDL 1318

PROFILE DRILLING MACHINES

Powerful Drilling Machine for Heavy Steel Construction
Capacity range W x H [mm]: 1300 x 500 and Number of Tools: 18

Benefits at a glance

  • Capacity Range (w x h): 1300 × 500 mm
  • Robust, low-vibration design prolongs machine and tool life
  • Machine portal in robust welded construction incorporating two horizontal and one vertical drilling unit
  • Three drill axes with a total of 18 tools and automatic tool-changing system with 6 tools per tool changer
  • Efficient drilling, contour-marking, centre-marking, counter-sinking and thread-cutting on all three drill axes simultaneously
  • Powerful clamping system reliably holds material and reduces vibrations to prolong band life
  • Intelligent material measurement integrated into clamping system for greater process reliability
  • Rapid/working feed concept for shorter idle times
  • Servomotor and ball screw for high-precision drill axis positioning and feed control
  • A saw can be incorporated to create a saw-drill combination
  • Powerful drives and modern spindle construction for high- performance machining
  • Milling of standard contours
  • Carbide and solid carbide drills can be used to significantly reduce production times
  • Servo motors with a rotation up to 2500 rpm
  • Contour Marking with 4 axes (optional)
KDL 1318
Material Marking by Means of a Milling Tool on the Drill Head

Material Marking by Means of a Milling Tool on the Drill Head

  • Application of reference boundaries for welding add-on pieces
  • DSTV-Data import
  • Use of high-speed carbide tools
  • In addition to the three drill axis - marking from the bottom (4th axis)
Machine Operation with the Most Advanced Software

Machine Operation with the Most Advanced Software

  • Process visualization directly on the control console
  • Easy data import and export
  • Materials database with factory settings
  • Production data report and numerous evaluation possibilities
  • Remote diagnosis
  • And much more
User Friendly

User Friendly

  • Automatic, continual swarf removal
  • Can be Installed on either side of the machine
Reduction of Cooling Lubricant

Reduction of Cooling Lubricant

  • Cooling lubricant for drilling tools with inner axial air supply and tools without internal cooling during feeding
  • Automatic use of cooling lubrication only during the drilling process
  • Minimal use of lubricant and compressed air
  • Electronic fill-level monitoring with display on control console
Processing Thin-Walled Profiles

Processing Thin-Walled Profiles

  • Automatic centre support when drilling thin-walled sections and profiles
Low Wear and Low Maintenance

Low Wear and Low Maintenance

  • Drill carriage mounted on dual play-free, pre-stressed linear guide elements
  • High precision during axis movement and when drilling
Short Changing Times for Tools

Short Changing Times for Tools

  • Automatic tool change on all drilling units for the most common tool sizes (magazine capacity 3 x 6)
  • Tool change units comprised of rotary magazines mounted adjacent to the drilling axes and moveing with the drill carriage
  • Tool change automatically sets the correct speed and feed rate values
Automatic Material Clamping and Material Measurement

Automatic Material Clamping and Material Measurement

  • Horizontal clamping device with fixed and movable clamping jaws and long-stroke clamping cylinder
  • Vertical clamping device with four hold-down devices for clamping the material to the machine rollers
  • The clamping devices measure the height and width of the section to be processed for material cross-checking control
  • Optimum clamping of the workpiece during the drilling process
Clamping System

Clamping System

  • Powerful and reliable clamping system reduces vibrations and so prolongs tool life
  • Intelligent material management and dimensional tolerance control
Tool length measurement

Tool length measurement

  • Light barrier for automatic tool length measurement
  • Light barrier is self-cleaning
  • Measured tool length to manage rapid and operating feed speed
Dimensions (L X W X H)mm6260 x 1190 x 3700
Weightkg11.000
ProceduresDrilling
Contour Marking
Milling
Threading
Reducing
Feedratemm/min0-1.500
Rapid advance/return movementmm/min0-15.000
Workspace max.mm1.300x500
working range Profilemm1.300x500
Working range min.mm60x10
Drilling unit vertical (Y-axis)Pieces1
Drilling unit horizontal (Z- and W-axis)Pieces2
Drill Sizemm8-50
Number of tools per axisPieces6
Drive power axekW34,5
Spindle speed max.min-1150-2.500
ToolsCarbide Tools
HSS-Tools
Solid Carbide Tools
Degree of Automationautomatic infeed
automatic outfeed
Full-Automatic
MaterialclassSawing
ProcessProfiles
Cross Transport with lifting pins

Cross Transport with lifting pins

  • Hydraulic liftable and lowerable lifting pins running in both directions
  • Drive system with continuously-variable frequency-controlled gear motor
  • Each lifting pin has its own hydraulic unit
Connection to Steel Roller Conveyor

Connection to Steel Roller Conveyor

  • Hydraulic liftable and lowerable lifting beams running in both directions
  • Drive system with continuously-variable frequency-controlled gear motor
  • Each lifting line has its own hydraulic unit



Fast Material Cross Transport

Fast Material Cross Transport

  • Material stock in heavy-duty steel construction
  • Sliding rails of synthetic material (polyamide) for low-noise material cross transport
  • Drag chains with transport claws
  • Drive system with continuously-variable frequency-controlled gear motor



Standard Measuring System on the Feed Side

Standard Measuring System on the Feed Side

  • Positioning drive through servomotor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines





Universal Measuring System on the Feed Side

Universal Measuring System on the Feed Side

  • Positioning drive through servo motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines
  • Hydraulic height adjustment for measuring various profile cross-sections









Space Saving Measuring System on the Feed Side

Space Saving Measuring System on the Feed Side

  • Positioning drive through servo motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines
  • Hydraulic height adjustment for measuring various profile cross-sections
  • Automatic transposition of the measuring carriage position from the rear to the forward gripper



PROFILINE

Modern Software Package for KALTENBACH Drilling and Drilling-Sawing Machines



PROFILINE - Easy, user friendly machine operation

PROFILINE - Easy, user friendly machine operation

  • Programming of orders via color touchscreen with large keypads directly on the machine control console
PROFILINE - Order manager

PROFILINE - Order manager

  • Create, copy and delete orders
  • Graphic display of individual positions within an order
PROFILINE  - Profile database

PROFILINE - Profile database

  • Comprehensive profile database
  • Easily expandable
  • Graphic display of workpiece forms
PROFILINE - Tool manager

PROFILINE - Tool manager

  • Tool Changer setup based upon the tool type and diameter
  • Allocation of the drill diameter to rotational speed settings and feed rates
PROFILINE - Production data report

PROFILINE - Production data report

  • Recording of production times of individual pieces or entire orders
PROFILINE - Data transfer and data response

PROFILINE - Data transfer and data response

  • Data input directly on the machine’s control console
  • Data import in DSTV or DSTV+ format
  • Data export of previously produced parts in DSTV feedback format to any directory
