Kaltenbach

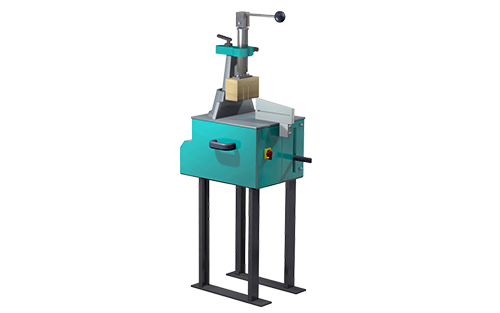

TL 350

CIRCULAR SAWING MACHINES

Manual Mitre Saw for Non-Ferrous Metals Up to Ø 110 mm

Benefits at a glance

  • saw blade: Ø 350 mm
  • Suitable for single cuts and processing small batches
  • Work safely at workbench or work table
  • Transportable for use in workshops or on-site use

Alternative Machines

TL 350
Tool Catalogue
Cutting Area

Cutting Area

  • TL 250, TL 350, TL 450
Technology at a Glance

Technology at a Glance

  • Precise and safe work by cutting from below
  • Fast setting for mitre cuts
  • Workpiece stop can be moved to extend cutting area
  • Work safely at workbench or work table
  • Saw blade guard, electrical overload protection and no-voltage release
  • Workpiece clamping with adjustable clamping device and hardwood clamping block for tightening on both sides of the saw blade
Transportable Saws

Transportable Saws

  • Trouble-free operation on construction sites
ProcessSawing
SawbladeØ mm350
Drive performancekW2,0
Cutting speedm/min3200
Dimensions (L X W X H)mm450x840x750
Machine Weightkg68
Workspace max.mm110
Working range Squaremm100
Working range Roundmaterialmm110
Mitre range30°/90°/30°
ToolsCarbide Tools
MaterialclassNon-ferrous metal
ProcessProfiles
Layers
L10 Length Measuring Device

L10 Length Measuring Device

  • High level of measuring accuracy for precise cuts
  • Available as left or right-hand model



L12 Length-Measuring Device

L12 Length-Measuring Device

  • Manual adjustment of the measuring length via guide rails with precision scale
  • Length readings for 90° and 45° cuts
  • Stop guide for short cuts
  • High level of measuring accuracy for precise cuts
L 45 E Length Measuring Device with Outfeed Roller Conveyor

L 45 E Length Measuring Device with Outfeed Roller Conveyor

  • Manual adjustment of the measuring length via ruler and vernier
  • High measuring accuracy for precise cuts
  • Measuring device extendable in units of 1000 or 2000 mm
  • Available in left and right-hand models
L 40 NC Length Measuring System with Outfeed Roller Conveyor

L 40 NC Length Measuring System with Outfeed Roller Conveyor

  • Cut-off lengths programmable via input field with large digital display
  • Fast and precise adjustment for accurate cuts
  • Data storage for recurring sawing tasks
  • Measuring device extendable in units of 1000 or 2000 mm
  • Available in left and right-hand models
T3 Modular Expandable Conveyor Roller System

T3 Modular Expandable Conveyor Roller System

  • For material feed and removal with circular saws
  • Ball-bearing light-running rollers
  • Operating width: 330 mm / Roller diameter: 60 mm
