Kaltenbach

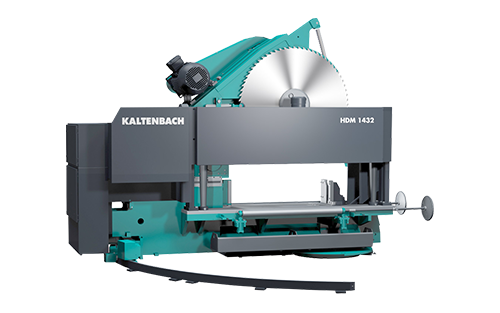

HDM 1432

CIRCULAR SAWING MACHINES

High Performance for Heavy Steel Construction and Steel Service Centers

Video

Benefits at a glance

  • Work area (w x h): 1.200 × 450 mm
  • Vertical saw on robust pivot bearing
  • Powerful drive for high-performance cutting
  • Single cuts in addition to layer and bundle cuts possible
  • NC-controlled cutting-angle setting
  • A drill can be incorporated to create a saw-drill combination
  • Feed via ball screw for perfect cutting results and long blade lif

Alternative Machines

HDM 1432
Visual Display of the Cutting Edge

Visual Display of the Cutting Edge

  • Processing of material via feed creep rate through of control keys directly on the saw frame
  • Sawing on manually made marks possible
Fast and Precise Mitre Adjustment

Fast and Precise Mitre Adjustment

  • Adjustment on free-standing control console
  • Measurement takes place through absolute rotary encoder and frequency-controlled motor
  • Automatic, hydraulic clamping of the machine after reaching the mitre setting
  • Reduced non-productive times when changing mitres
Manual Material Positioning

Manual Material Positioning

  • Supply rollers attached to the left and right of the saw table
  • Transport and positioning movement in the sawing area with removable hand wheel
Automatic Material Clamping

Automatic Material Clamping

  • Hydraulic profile clamping within the automatic sawing control (clamping, sawing, unclamping)
  • Clamping bridge clamps directly alongside the saw blade for precise cuts, even with short cutting lengths
  • Clamping and sawing of layers and bundles possible
Transport of Short Profiles

Transport of Short Profiles

  • Power driven transport rollers on the infeed and outfeed sides immediately beside the saw table
  • Short material lengths can also be transported through the sawing area with mitre settings
High Performance Cutting

High Performance Cutting

  • High performance cutting and long blade life
Quiet Operation and Constant Feed

Quiet Operation and Constant Feed

  • Infinitely adjustable feed rate on the control console
  • OPTIFEED for automatic control of saw blade feed and cutting speed
  • Excellent regulation response through changing material cross-sections
Chip remover

Chip remover

  • Chip remover cleans the saw blade for perfect cutting results and shorter cutting times.
Fast Marking Process

Fast Marking Process

  • Fast marking process for applying letters and numerals
  • Up to 22 characters without material movement
  • Can be integrated into fully-automated handling processes
  • Imprint still clearly visible after galvanizing or painting
Drive performancekW22,0
Dimensions (L X W X H)mm4500 x 1600 x 3200
Weightkg9.500
ProceduresSawing
SawbladeØ mm1.430 x 9,5
Drive performancekW22,0
Cutting speedm/min8-30
Workspace max.mm1.200 x 450
Working range Squaremm440x440
working range Profilemm1.200x450
Working range min.mm50x50
Mitre range-45°/90°/+35°
ToolsHSS-Tools
Degree of Automationautomatic infeed
automatic outfeed
MaterialclassSawing
ProcessProfiles
Bundles
Layers
T 13 Transport System for Steel Construction and Steel Service Centers

T 13 Transport System for Steel Construction and Steel Service Centers

  • For material feed and removal
  • Executed in welded construction with maintenance-free, ball-bearing conveyor rollers of solid material
  • Roller-conveyor drive on the feed and removal sides with frequency-controlled gear motor
Cross Transport with lifting pins

Cross Transport with lifting pins

  • Hydraulic liftable and lowerable lifting pins running in both directions
  • Drive system with continuously-variable frequency-controlled gear motor
  • Each lifting pin has its own hydraulic unit
Connection to Steel Roller Conveyor

Connection to Steel Roller Conveyor

  • Hydraulic liftable and lowerable lifting beams running in both directions
  • Drive system with continuously-variable frequency-controlled gear motor
  • Each lifting line has its own hydraulic unit



Fast Material Cross Transport

Fast Material Cross Transport

  • Material stock in heavy-duty steel construction
  • Sliding rails of synthetic material (polyamide) for low-noise material cross transport
  • Drag chains with transport claws
  • Drive system with continuously-variable frequency-controlled gear motor



Standard Measuring System on the Feed Side

Standard Measuring System on the Feed Side

  • Positioning drive through servomotor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines





Universal Measuring System on the Feed Side

Universal Measuring System on the Feed Side

  • Positioning drive through servo motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines
  • Hydraulic height adjustment for measuring various profile cross-sections









Space Saving Measuring System on the Feed Side

Space Saving Measuring System on the Feed Side

  • Positioning drive through servo motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Additional pusher plates (optional) enable the handling of layers and bundles with stand-alone sawing machines
  • Hydraulic height adjustment for measuring various profile cross-sections
  • Automatic transposition of the measuring carriage position from the rear to the forward gripper



Standard Measuring System on the Feed Side for Sawing Machines

Standard Measuring System on the Feed Side for Sawing Machines

  • Positioning drive through frequency regulated three-phase motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Rapid pivoting of the squaring arm
  • Manual adapter for processing short lengths





Universal Measuring System on the Outfeed Side for Sawing Machines

Universal Measuring System on the Outfeed Side for Sawing Machines

  • Positioning drive through servo motor with absolute rotary encoder
  • Automatic NC positioning via machine software
  • Rapid pivoting of the squaring arm
  • Automatically-extending adapter for processing short lengths
  • Material weights of more than 8 t can be processed through additional brake cylinder (optional)





Low-Noise Material Cross Transport

Low-Noise Material Cross Transport

By lightly raising the material using polyamide-coated rollers integrated into the roller conveyor, the traditional “steel on steel” noise from cross transporting profiles is significantly reduced. Transport technology in steel construction and steel trading will be revolutionized through this new system.

  • Fully-automatic control
  • Contributes to enhanced occupational safety and the protection of personnel and the environment



PROFICUT

Modern Software Package for KALTENBACH Sawing Machines



PROFICUT - Easy, user friendly machine operation

PROFICUT - Easy, user friendly machine operation

  •  Programming of orders via color touchscreen with large keypads directly on the machine control console
PROFICUT - Profile database

PROFICUT - Profile database

  • Comprehensive profile database
  • Easily expandable
  • Graphic display of workpiece forms
PROFICUT  - Production data report

PROFICUT - Production data report

  • Recording of production times of individual pieces or entire orders
PROFICUT - Data transfer and data response

PROFICUT - Data transfer and data response

  • Data input directly on the machine control console
  • Data import in DSTV or DSTV+ format
  • Data export of previously produced parts in DSTV feedback format to any directory
