Kaltenbach

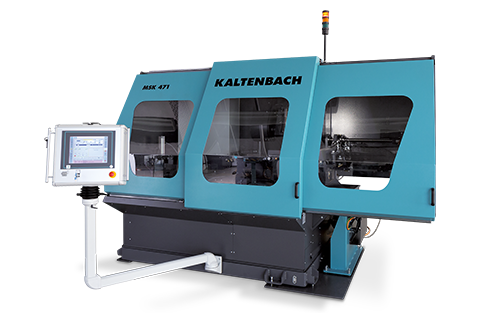

MSK 471 NA
CIRCULAR SAWING MACHINES

Fully automatic straight-cut circular saw

Video

Benefits at a glance

  • Work area: Ø 152 mm
  • Fully-automatic processing and sorting of finished pieces
  • Saw is low vibration due to extreme stiffness of the components
  • Infeed side can be arranged modularly, according to production requirements
  • Outfeed side can be customized according to customer-specific containers
  • Use of HSS- and carbide saw blades
  • Connection to storage systems
MSK 471 NA
Range of tools Saw Blades

Technical Data

Drive performancekW19
Weightkgapprox. 4.750
Supply and discharge sideSawing
SawbladeØ mm470
Cutting speedm/min8-150
Sawblade feedratemm/min0-2.000
Rapid advance/return movementmm/min6.000
Workspace max.mm152
Working range Squaremm140x140
Working range Roundmaterialmm152
working range Profilemm140x140
ToolsCarbide Tools
HSS-Tools
Degree of Automationautomatic outfeed
automatic sorting of trim and remnant cuts
automatic infeed
Full-Automatic
Material classStainless Steel
Steel
Working processesLayers
Massproduction
Solid Material
Profiles
Single stroke lengthmm1.200
Multiple stroke lengthmm9.999

In-/Outfeed side

Automatic Bar Separation

Automatic Bar Separation

VM Bundle Magazine
Automatic Bar Infeed

Automatic Bar Infeed

FM 1 Flat Magazine
Automatic Bar Infeed

Automatic Bar Infeed

LM 1 Loading Magazine
Tilting Table with Distribution Device

Tilting Table with Distribution Device

  • For removal of front cuts, end pieces and cut lengths to freely-selectable positions



T 4 Transport System for Circular Saws

T 4 Transport System for Circular Saws

  • For material feed and removal with circular saws
  • Solid rollers running in ball bearings, optionally available with drive
  • Operating width: 390 mm / Roller diameter: 60 mm



PROFICUT

Modern Software Package for KALTENBACH Sawing Machines



PROFICUT - Easy, user friendly machine operation

PROFICUT - Easy, user friendly machine operation

  •  Programming of orders via color touchscreen with large keypads directly on the machine control console
  • Storage possibility for as many sawing orders as desired
  • Automatic calculation of cutting speed and feed over the material group or DIN-Nr. (steel key)
  • Graphical representation of the material
  • Machine operation
PROFICUT - Profile database

PROFICUT - Profile database

  • Comprehensive profile database
  • Easily expandable
  • Graphic display of workpiece forms
PROFICUT  - Production data report

PROFICUT - Production data report

  • Recording of production times of individual pieces or entire orders
PROFICUT - Data transfer and data response

PROFICUT - Data transfer and data response

  • Data input directly on the machine control console
  • Data import in DSTV or DSTV+ format
  • Data export of previously produced parts in DSTV feedback format to any directory
